Concrete Batching Control Systems

Our Plant Control Systems are designed specifically for concrete batching plants, we also use our customers to provide details of requirements and preferences along with industry technical data. Our systems are designed to achieve four main objectives.


We know that block/pavers/Flyash brick precast plants are unlike any other plant and we make them accordingly with concrete product plants in operation we are delivering customized precast plants that fit any machine. Any capacity all components used in our block and paver`s plants are designed form the stand to be adaptable and multifunctional. Form the design and specifications stages to engineering, manufacturing and installation benny directly controls each and every step of the project through a modular integrated approach.

3 Bin Batching Plant

  • Each Bin 2.5 MT 4 nos (2500x1500x1500)
  • Weighting Conveyor: 800 mm width x 8 meter length fitted with 5H.P. Gear box & Motor.
  • Bin vibrator motor 1 H.P.
  • Discharge Screw Conveyor 2 H.P.
  • Discharge Belt Conveyor fitted with 2H.P. Motor
  • Mixer input Conveyor 600 mm x 7 mtrs with 3 H.P. Motor & Gear Box
  • Cement weight hopper with screw conveyor 5 mtrs length 3 H.P. Gear Box motor with Pneumatic Valve without compressor.

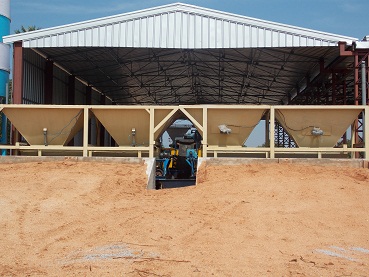

4 Bin Batching Plant

  • Weighting Conveyor : 800mm Width x 6 meter Length, fitted with 3 H.P. Motor and Gear Box.
  • Bin Vibrator Motor : 1 H.P.
  • Discharge Screw Conveyor fitted with 2 H.P. Motor.
  • Discharge Belt Conveyor fitted with 2 H.P Motor.
  • Mixer Input Conveyor 60mm x 7 meters fitted with 2 H.P. Motor and Gear Box.
  • Cement Weight Hopper with Screw Conveyor: 5 meters in Length with 3 H.P. Motor and Gear Box with Pneumatic Valve without Compressor.
