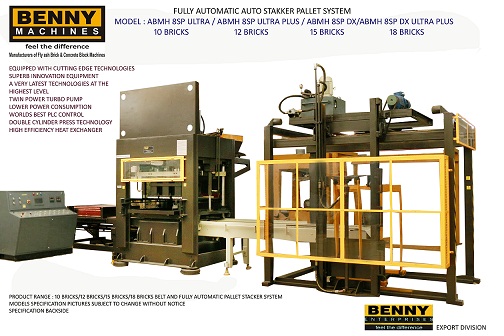

Automatic Fly Ash Brick Making Machine Pallet System

10 Bricks Model: ABMH: - 8 Ultra Pallet System.

Enquiry

MODEL - ABMH 8 SP SUPER ULTRA AUTO STACKER PALLET SYSTEM HEAVY PRESSING.
Hydraulic Motor 15 H.P./11.25 KW
Brick Eject Motor 1 H.P./0.75 KW
Heat Exchanger 1 H.P./0.75 KW
Conveyor System 3 H.P./2.25 KW
Pan Mixer Machine 20 H.P./15 KW
Hydraulic Stacker Motor 3 H.P./2.25 KW
Stacker Travel Motor 3 H.P./2.25 KW
Pallet Chain Conveyor 1 H.P. 0.75 KW
System  Hydraulic Free Fill
Dimension H-2800 x W-1500 x L-2800
Weight   8500 KG
Fully PLC Control
Sliding Rod OD 50 EN8 Grinded Hard Chromed
No: of Cylinders 6 No`s
Sliding Bush Steel Casting
Main Cylinder  OD 200 x 350 x 1100
Side Cylinder  OD 80 x 50 x 350
Ejector Cylinder  OD 50 x 35 x 1100
Max Pressure   220+220=440 BAR
Hydraulic Pump  Turbo Twin System
Cycle Time  15 Seconds
Mould  EN8 RAM and EN24 PUNCH
Ejector Conveyor  Hard Polymer, Easy Changeable
No: of Labour   12 (Only for Production)
Land Required  1 Acre
Shed Size 60` x 100` (Feet)
Water Requirement 10,000 liters per shift

  • Equipped with Cutting Edge Technology
  • Superb Innovation Equipment
  • The Very Latest Technology at the highest level
  • Twin Power Turbo Pump
  • World`s Best PLC Control
  • Double Cylinder Oress Technology
  • Easy Changeable Conveyor Belt
  • High Efficiency Heat Exchanger

Model Specifications are subjected to change without notice for Improvement.
