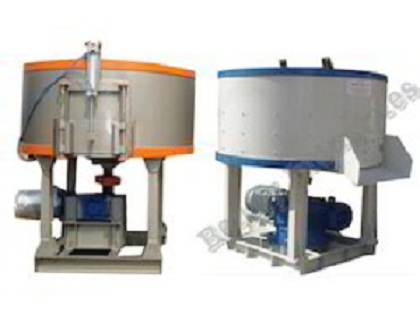

Special Type Pan Mixing Machine with Solenoid Control Pneumatic Door System fitted with Rossi (Italy) high efficiency Bevel Helical Gear Box and 15 H.P Motor.
Specifications for Pan Mixer 500
| Capacity? | 500 Kgs? |
| Drum Height?? | 600 x 1600mm? |
| Total Height?? | 1600mm |
| Inner Liner? | 6 x 2000mm? |
| Bottom Ware Plate? | 6mm : 4 no's? |
| Bottom Ware Plate? | 16mm? |
| Side Plate | 200 x 6mm? |
| Main Housing Rod?? | 100mm? |
| Tapper Roller Bearing? | 2 no`s? |
| Thrust Bearing? | 1 no? |
| Mixing Blade Arms? | 2 no`s. MS Plates with High Carbon Tips? |
| Mixer Roller? | 200 x 400mm : 2 no`s. Graded Cast Iron? |
| Cast Iron Rollers? | 2 no`s? |
| V-6 Type Gear Box?? | 1:40 Ratio? |
| Oil Capacity? | SEA-300. 10 liters? |
| Motor? | 20 H.P. 1440 RPM? |
| Belt Drive? | Foot Mounted? |
| Total Weight? | 3.5 Tons |
Model Specifications subject to change without notice for Improvement.
Special Type Pan Mixing Machine with Solenoid Control Pneumatic Door System fitted with Rossi (Italy) high efficiency Bevel Helical Gear Box and 15 H.P Motor.
Specifications for Pan Mixer 250
| Capacity? | 250 Kgs? |
| Drum Height?? | 600 x 1300mm? |
| Total Height?? | 1500mm |
| Inner Liner? | 6 x 150mm? |
| Bottom Ware Plate? | 6mm : 4 no;s? |
| Bottom Ware Plate? | 16mm? |
| Side Plate | 200 x 6mm? |
| Main Housing Rod?? | 100mm? |
| Tapper Roller Bearing? | 2 no`s? |
| Thrust Bearing? | 1 no? |
| Mixing Blade Arms? | 2 no`s. MS Plates with High Carbon Tips? |
| Mixer Roller? | 200 x 400mm : 2 no`s. Graded Cast Iron? |
| Cast Iron Rollers? | 2 no`s? |
| V-6 Type Gear Box?? | 1:40 Ratio? |
| Oil Capacity? | SEA-300. 10 liters? |
| Motor? | 20 H.P. 1440 RPM? |
| Belt Drive? | Foot Mounted? |
| Total Weight? | 2 Tons |
Model Specifications subject to change without notice for Improvement.
Special Type Pan Mixing Machine with Solenoid Control Pneumatic Door System fitted with Rossi (Italy) high efficiency Bevel Helical Gear Box and 15 H.P Motor.
Specifications for Pan Mixer 750
| Capacity? | 750 Kgs? |
| Drum Height?? | 900 X 1700MM |
| Total Height?? | 1600mm |
| Inner Liner? | 6 x 2000mm? |
| Bottom Ware Plate? | 6mm : 4 no's? |
| Bottom Ware Plate? | 16mm? |
| Side Plate | 200 x 6mm? |
| Main Housing Rod?? | 100mm? |
| Tapper Roller Bearing? | 2 no`s? |
| Thrust Bearing? | 1 no? |
| Mixing Blade Arms? | 2 no`s. MS Plates with High Carbon Tips? |
| Mixer Roller? | 225 x 400mm : 2 no`s. Graded Cast Iron? |
| Cast Iron Rollers? | 2 no`s? |
| V-6 Type Gear Box?? | 1:40 Ratio? |
| Oil Capacity? | SEA-300. 10 liters? |
| Motor? | 20 H.P. 1440 RPM? |
| Belt Drive? | Foot Mounted? |
| Total Weight? | 4.8 Tons |
Model Specifications subject to change without notice for Improvement.
